Home Products Electrical Testing High Current Test PCITS & SCITS T&R DMO200

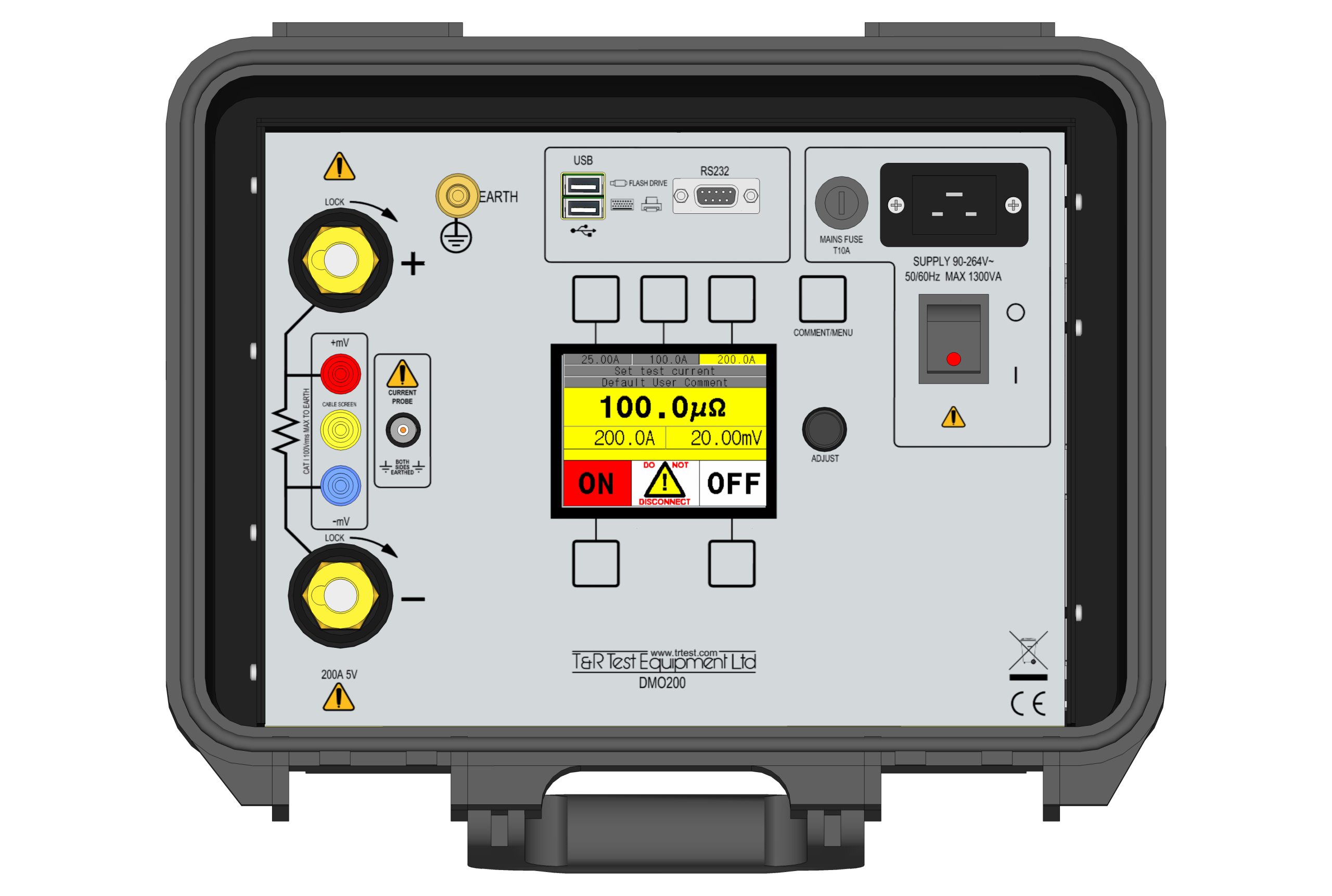

T&R DMO200 Top-View

T&R DMO200

The DMO200 is a high current micro-ohmmeter suitable for measuring very low resistances in a wide range of applications. The unit is equally suited to commissioning, maintenance, and production line environments. Contact resistances in circuit breakers, switch panels, isolators, and busbar joints are all easily and safely measured.

The DMO200 is simple to operate, only requiring the user to select the test current and switch the output on. The unit has presettable test current with three buttons to store commonly used test currents. Selection of all ranges is fully automatic, and current, voltage and resistance are displayed simultaneously. The resistance is calculated from the test current and sense voltage. To assist the user, all readings are held on the display when the output is switched off.

SKU: Trdmo200-19

HIRE DURATION
PRICE per week
£175.00
(per week)
  • Downloads

    • Specification Sheets
    • User Guides
    Download spec

    Technical Specs

    • Ultra lightweight (6.9kg)
    • 1-200Adc test current with <2.5% ripple
    • 0.1μΩ resolution
    • mV, A, and m/μΩ displayed simultaneously
    • USB memory key for data storage
    • USB keyboard for comment entry
    • Pre-settable test current with three buttons to store user test currents
    • Large back-lit liquid crystal display
    • Universal supply voltage 90-264V
    • Supplied with 3m output lead set
    • Calibration Certificate
  • T&R

    T & R Test Equipment Ltd. is a member of the T & R group of companies which design and manufacture a wide range of products, including electrical test equipment, power transformers, specialist transformers and power rectifiers.

    The group includes:

    Transformers & Rectifiers

  • Delivery & Collection Information

    We use next day couriers to deliver all our test instruments.  That means it doesn’t matter if you’re 2 or 200 miles away, we can have the test equipment you need, delivered first thing, next day.

    When you have finished with the test equipment we can arrange for the same courier to collect it from you.

    We also offer a same day delivery service for when you really need the test equipment urgently.
